Garage doors automation



New generation of smart drives

Faster. Safer. More intelligent. Brighter. This is the future of garage doors.

SOMMER drives are the enhanced version of the well-tested concept of synchronous drive. The self-locking drive provides active resistance in the event of a break-in attempt. Coupled with a two-way encrypted SOMlog2 radio system makes the drive particularly safe.



MODELS

A wide range of models allows you to perfectly adapt the drive to your needs.

Sommer APERTO

APERTO

Basic model
Universal drive equipped with standard features. Intelligent control for comfort and safety. The ideal solution for garage doors in single-family houses.

Napęd Sommer base+

base +

Increased possibilities
Extensive control rooms, more power for even greater comfort. Dedicated for customers with special requirements.

napęd Sommer pro+

pro+

Maximum flexibility
A separate control module optimizes installation in every garage. Built-in opening further enhances comfort.

Napęd Sommer tiga tiga+

tiga / tiga +

Versatile technology for underground and collective garages
In the case of collective and underground garages completely different requirements apply in comparison to conventional garages. Drives for SOMMER underground garage doors have been designed specifically for them. They are extremely strong and durable, and extremely easy to install and adjust. These advantages apply to both the user and the person responsible for installation.

Sommer duo vision

duo vision

Classic controller with a separate housing
Garage door drive SOMMER duo vision is characterized by innovative technology combined with an elegant appearance.

Additional options

 RADIO CONTROL

LEGEND

Uninterrupted control signal

128-bit encryption

Impact resistance

Bi-directional radio system

Vibration


4-channel Pearl remote control

4-channel hand-held transmitter

sygnal.jpg szyfrowanie.jpg odpornosc.jpg

4-channel Pearl Vibe remote control

4-channel hand-held transmitter

  • The function of checking the gate position / receiver status
  • Tactile feedback through vibration
  • Efficient vibration motor ensures long battery life

sygnal.jpg szyfrowanie.jpg odpornosc.jpg dwukierunkowy.jpg wibrowanie.jpg

4-channel Pearl Status remote control

3-channel hand-held transmitter

  • The function of checking the gate position / receiver status without moving the door due to the specially marked red button
  • Tactile feedback through vibration
  • Efficient vibration motor ensures long battery life

sygnal.jpg szyfrowanie.jpg odpornosc.jpg wibrowanie.jpg dwukierunkowy.jpg

2-channel Pearl remote control

Detects objects or persons in the gate path.

sygnal.jpg szyfrowanie.jpg odpornosc.jpg wibrowanie.jpg

4-channel Slider + emote control

4-channel hand-held transmitter

  • High quality, modern design with stainless steel elements
  • Sliding lid protects against accidental use
  • Ideal for mounting on a keyring thanks to the compact design

sygnal.jpg szyfrowanie.jpg odpornosc.jpg

4-channel Slider + remote control

4-channel hand-held transmitter

  • High quality, modern design with stainless steel elements
  • Sliding lid protects against accidental use
  • Ideal for mounting on a keyring thanks to the compact design
  • Efficient vibration motor ensures long battery life
  • The function of checking the gate position / receiver status
  • Tactile feedback through vibration

sygnal.jpg szyfrowanie.jpg odpornosc.jpg

ENTRAsys GD fingerprint reader

  • Function which opens the gate with a single touch
  • Fingerprint opening
  • Fast detection
  • Sufficient memory space
  • Inability to deceive
  • Radio commands to ensure safe transmission
  • Flexible radio system
  • Easy installation
  • Low power consumption


ENTRApin radio keyboard

  • Gate opening with an individually programmed numerical code
  • No need for keys and access cards
  • Radio commands to ensure safe transmission
  • Easy installation
  • LED status indicators


telecodes+

SUMMER transmitters offer you numerous opportunities to increase the comfort of everyday life. Easy opening of the garage door via radio, switching lights on and off or unlocking the door.


Universal radio 112 codes

  • Antenna: integrated; external antenna optional
  • Memory: 112 radio codes can be programmed
  • Control output: 2 potential-free transmitter contacts (NO, 1 A, DC 24 V)
  • Connection: 6-pole terminal screw
  • Mode: monostable (Tip) the relay closes its contact as long as the control signal is present


Universal radio 448 codes

  • Antenna: integrated; external antenna optional
  • Memory: 448 codes capacity, radio plug-in module
  • Control output: 2 potential-free transmitter contacts (NO, 1 A, DC 24 V)
  • Connection: 6-pole terminal screw
  • Mode: monostable (Trp) - relay closes its contact as long as the control signal is present
  • Bistable mode (Toggle) relay can be switched on and off via radio, just like the impulse relay


Radio antenna

Radio antenna, 868,6 MHz frequency Available cable lengths: 2, 6, 10, 16 m.

 ACCESSORIES


rotary photocell

Can be used for each of the NC / NO safety input drives, e.g. the drives for garage doors, swing gates, sliding gates and others.

The special design allows you to install the photocells on each post without the need for additional brackets. Ideal in situations where the posts are not in a straight line.


24 V warning light

For all drives with lamp output voltage of 24V Lamp without auto-flashing function Drive control board manages lamp flashing For all SOMMER drives, except for SM40T and drives for industrial doors.


LED 24 V warning light

Orange LED warning lamp, SOMMER, 24V IP44. Not self-flashing, BA 15s mounted LED bulb 3W 24-36V. Application: all SOMMER drives, except for SM40T.


emergency opening

Key unlocking with a cord. Allows to unlock the drive from the outside of the garage in case of power outage. Application: drives for sectional, hinged, swing and side garage doors. Hole diameter: 20.5 mm


LOCK

Magnetic lock which locks the drive mechanically in any position (applicable for doors with ventilation as well). Able to withstand pressure up to 300 kg, thereby increasing the level of existing anti-theft protection.


SENSO

For measuring the temperature and humidity in the garage. If necessary (eg. When air humidity is too high), the trolley automatically opens the door to a low height, ensuring circulation. After reaching optimum humidity level, the gate closes, and the risk of development of fungi in the garage decreases.


MEMO

It allows for memory expansion up to 450 transmitter commands. If servicing is needed, the collected data can be easily transferred to a new trolley.


Lumi +

Additional LED lighting for ceiling driver. Activated in parallel with the light of the trolley; the function to engage and disengage with the trasmitter using lighting function.


Lumi PRO +

Additional LED lighting for wall control. Activated in parallel with the light of the trolley; the function to engage and disengage with the trasmitter using lighting function.


BUZZER

Two options to choose from in one product: Buzzer alarm detects burglary attempt and sends a loud warning signal. Warning buzzer emits an acoustic signal while the door is being closed or when the transition doors are open.


LASER

Assists the driver in the ideal setting of the vehicle in the garage. The laser is activated when the gate is being opened and when the trolley illuminates the room.

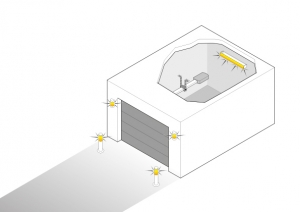

RELAY

The additional relay allows switching additional garage and backyard lighting or other 230V power receiver.


MOTION

Passive infra-red detector for detecting and responding to invisible thermal radiation of the moving body (human / animal). Safe passage in the garage is engaged automatically upon entrance operator lighting (additional lighting / relay).


ACCU

In the event of power outage, it takes over drive powering for up to > 5 door cycles.


CONEX

Allows to connect two wired pulse transmitters to control the gate and one outdoor lighting. Operating modes "defined opening" and "defined closing" are optional.


Output OC

Sends information regarding the door position (open / closed) to Smart Home systems. Optionally, you can connect additional external lighting.
